FRITZ EMDE High & Low-Pressure Units HND-W-3

High & Low-Pressure Units HND-W-3

Chroma Gas Sdn Bhd
Type: Sale

Combined stationary High- and Low-Pressure testing unit for wall assembly with 3 connections, model HND-W-3.


Inquiry / Quote

To: Chroma Gas Sdn Bhd

Description

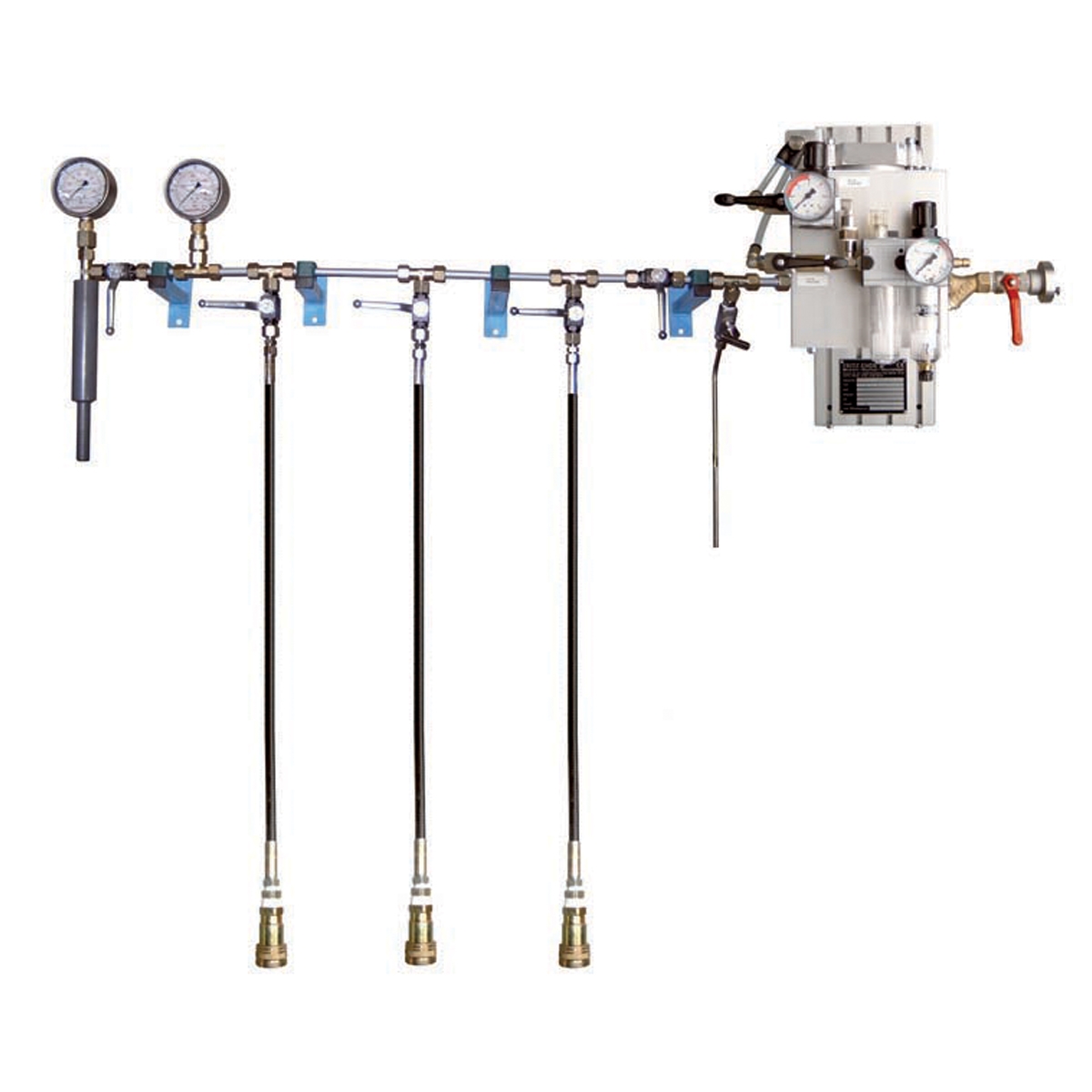

Combined stationary High- and Low-Pressure testing unit for wall assembly with 3 connections, model HND-W-3.
The High- and Low-Pressure testing unit, model HND-W-3 is a testing unit with 3 connections for wall assembly. It is suitable for testing of powder- and CO2 -fire extinguishes, CO2 bottles, breathing air apparatus, diving bottles, N2 cylinders etc. of all sizes, dimensions and types.

Optional available at extra charge:

  • Further testing connections
  • Water bassin
  • Safety protection cover automatic cut-off


Unit consists of:

  • 3 testing connections à 1.5 m equipped with quick-type coupling

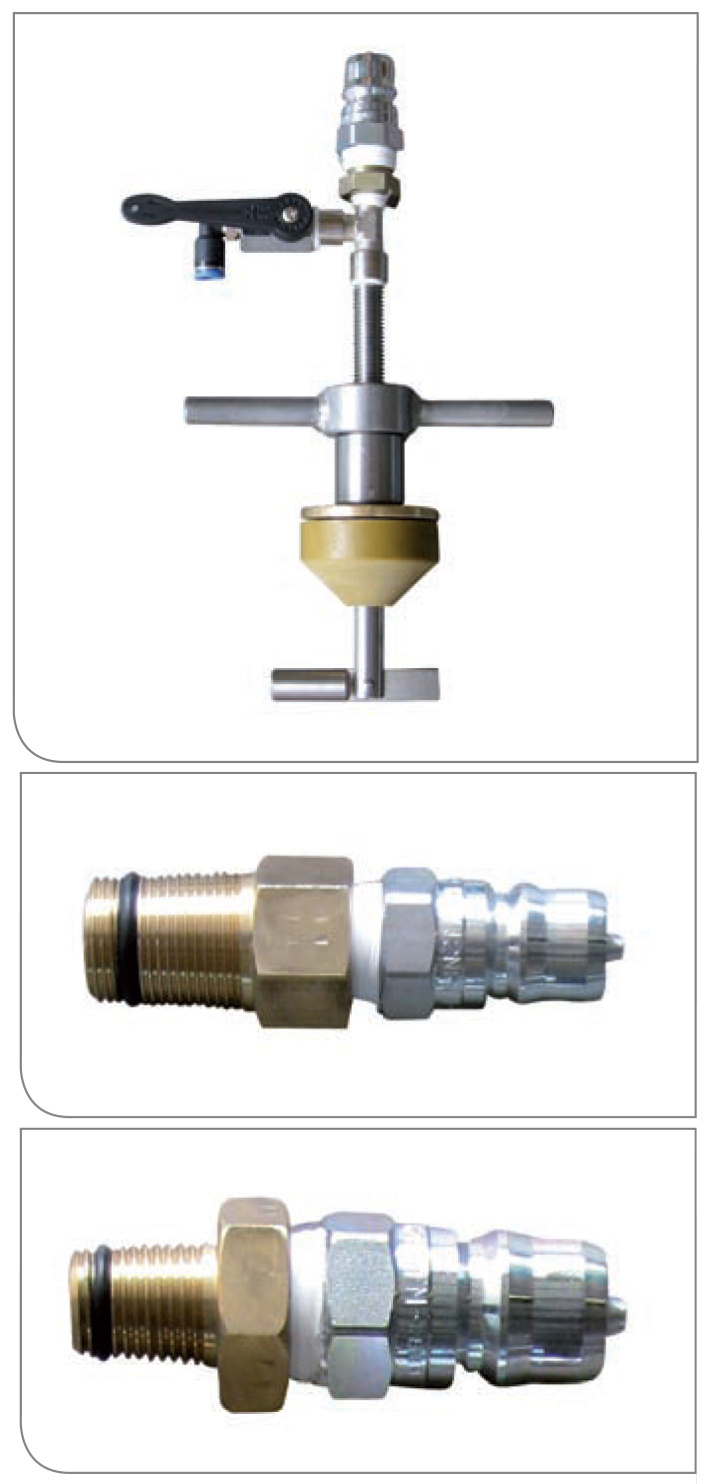

  • 3 plug-in adaptors large conical and 3 plug-in adaptors small conical (further adaptors with different sizes on demand as extra)
  • 3 universal Low-Pressure adaptors
  • Lockable valves for separate test
  • Relief valve
  • High-Pressure Ermetho piping
  • Compressed air driven High-Pressure pump
  • Pressure gauge 0 – 600 bar (High-Pressure)
  • Pressure gauge 0 – 60 bar (Low-Pressure)
  • Safety valve 40 bar (Low-Pressure)
